7PCS/MINUTE HIGH SPEED STEEL BARREL PRODUCTION LINE

1. MATERIAL PROCESSING OF STEEL BARREL PRDUCTION LINE

1.1 Steel Coiler Uncoil and Strainghting Production line

【Feature】

This production line is use to uncoiler, straight and cut the material which used on the barrel bottom, barrel lid and drum body to the requried size. The control system includes the control part, moving part and display part and the PLC is from Taiwan. Whrea the screen uses 10.4 inch industrial color touch screan and 2400 line encoder.

The production is made of single support uncoiler, panel support machine, straighting machine, tractor, panel cutting machine, feeder, material packing station and etc. The production line use the machine, electricity, hydraulic, gas to process the coiler steel automatically.



【Main Technical Specification】

·Capacity：8T ·Power：16KVA ·Work pressure of Hydraulic system：8MPa ·Uncoiler width：660-1320mm ·Panel Thickness：0.5-1.2mm

·Maximum Speed：12m/min ·Maximum width of steel panel：1250mm ·Accuracy：Length±0.8mm ·Diagonal error ：±1.0mm ·Dimension：5000×4600×1700mm



1.2 Barrel lid and barrel bottom punch production line

【Products Feature】

THe barrel lid and barrel bottom automatic punch production line is used to production the barrel bottom and barrel lid automatically. This production line is made of uncoiler, coiler steel inspection device, straighting machine, 2 units of 160 Ton puncher, die of the barrel lid, barrel bottom, tractor, waste material cutting machine, product convery roller and cotrol system. This is driven by mechanical, hydraulic and gas.

【Main Technical Specification】

·Maximum Coiler Weight：8T
·Width of steel panel：1250mm
·Thickness of steel panel：0.5-1.2mm
·Labors：3men/ line
·Production Capacity：not less than 20pcs/min
·Dimension：25000×5000mm



1.3 Precurl Glue Machine

【Products Feature】

Precurl glue machine is used to process the barrel bottom and bottom lid with maximum diameter 635mm and thickness 1.4-1.5mm.

【Main Technical Specification】

·Maximum processing size（Thickness×Diameter）：1.5×635mm
·Operation Styple：Automatic/ Half automatic
·Production speed：6 PCS/ Minute
·Height of work station：1200mm
·Dimension of machine：2000×850×1550mm
·Height：2T

1.4 Die of Barrel Bottom（200L）

【Products Feature】

The multi function die can finish the punch, forming once and it features with high Prodcution Speed, power saving. THe die adopts double guide post structure, Slanting knife-edge type or Straight blade type kinfe. The alloy tool steel products is processed by heat treatment to make it endurable.

【Main Technical Specification】

·Press type：toggle joint/ press ·Strengthen Structure：Built-in ·Blade Hardness：HRC58-62 ·Blade Material：Alloy tool steel

·Press edge and blanking method：air cushion/spring/rubber ·Guide Structure：Double guide post /Multi guide post · Blade structure ：Slanting knife-edge type or Straight blade type kinfe



1.5 Die of Barrel Lid（200L）

【Products Feature】

The multi function die can finish the punch, forming once and it features with high Prodcution Speed, power saving. THe die adopts double guide post structure, Slanting knife-edge type or Straight blade type kinfe. The alloy tool steel products is processed by heat treatment to make it endurable. It is fit for the production of 200L steel barrel.

【Main Technical Specification】

·Press type：toggle joint/ press ·Characters die structure ：built in/built outside ·Blade Hardness：HRC58-62 ·Blade Material：Alloy tool steel

·Press edge and blanking method：air cushion/spring/rubber ·Guide Structure：Double guide post /Multi guide post · Blade structure ：Slanting knife-edge type or Straight blade type kinfe



1.6 Edge Milling Machine

　　【Products Feature】

THe edge milling machine is used to milling the edge of material whcih used to forming the dram body. THe machine adopt  Photoelectric Signal ot control the blade speed to cut in and out to ensuer the quaolity. It adopts hard alloy blade to make it durable and easy to operate and features with low voice, energy saving, no pollution and better envoriment.

【Main Technical Specification】

·Edge milling width：≤13mm ·Barrel Size：208-100L ·Operation Style：Automatic/ half Automatic ·Machine Prodcution Speed：3-4m/min ·Machine feed height：890mm

·Cutter Head Motor Power：4×1.1KW ·Feeder Motor Power：2.2KW ·Electrical Cabinet Dimension：700×600×1500mm ·Total Weight：4T



1.7 Barrel hoop Forming machine

【Products Feature】

This barrel hoop forming machine is used to press round, ladder shape and rectangle shape hoop. It adopts big modulus gear, big bearings. All the gears, bearings and rollers are high quality steel and after high frequency carburizing quenching to ensure the high bearing, stable quality and endurable.

【Main Technical Specification】

·Barrel hoop Thickness：0.5-2.0mm ·Motor Power：1.5/2.2KW ·Roller Amount：5 Pairs ·Forming Speed：12m/min

·Apply Scope：Rectangle、Round、ladder- shaped ·Dimension：1100×580×1000 ·Cutting System：Punch Cutting/ Cutting machine ·Total Weight：185Kg



1.8 Closed hoop type lever type closed mold

　　【Products Feature】

XJY81 type closed lever die is made of: 1. big clamp punch die 2. big clamp forming die 3. small clamp punch die, 4 small clamp forming die, 5, Hand heavy die 6.Handle forming die 7. Connecting slab punch die 8. Safety pin punch die.



2. STEEL BARREL FORMING MACHINE

2.1 Sheet Roll Round Machine

【Products Feature】

This three roller roll machine is used to produce the steel barrel with all the size in GB325. It is driven by cycloidal planetary gear speed reducer and the roller gap is adjusted by spiroid gear pair and nut at the same time to make sure the accuracy of the thickness and drum diameter.



【Main Technical Specification】

·Coil Steel Thickness：0.3-1.5mm ·Barrel Height：300-1000mm ·Barrel Diameter：280-600mm ·Speed：12m/min

·Working Height：900mm ·Motor Power：2.2KW ·Dimension：1400×600×1600mm



2.2 Barrel Body Forming Machine (3 In 1)

【Products Feature】

The machine adopt four four pillar type guide pin structure and it is drived by the hydraulic device. The barrel body ruffled, corrugation and rectilineal can be finished at once. The PLC brand is Simens and the electrical start from low power, the power and the time display in numbers. It is also have count founcation, and the work model cna be chosen. The corrugation can be chosen the orders. The fault can be reminded from sound and light. The hydraulic system is apply with ISO international standard and the central control system won't be interupted.



【Main Technical Specification】

·Machine Prodcution Speed：3-6PCS/min ·Motor Power：Single hydraulic Station15KW；Double Hydraulic Station 2×15KW ·Maximum processing：600×1000mm（Diameter×Height） ·Working height：960mm ·Operation Style：Automatic/ half Automatic

·Machine Dimension：4910×850×1765mm ·Hydraulic StationDimension：1300×900×1400mm ·Electrical Cabinet Dimension：700×600×1800mm ·Total Weight：6.8T

2.3 Barrel Body Forming Machine (3 In 1)

　　【Products Feature】

The machine adopt four four pillar type guide pin structure and it is drived by the hydraulic device. The barrel body ruffled, corrugation and rectilineal can be finished at once. The PLC brand is Simens and the electrical start from low power, the power and the time display in numbers. It is also have count founcation, and the work model cna be chosen. The corrugation can be chosen the orders. The fault can be reminded from sound and light. The hydraulic system is apply with ISO international standard and the central control system won't be interupted.



　　【Main Technical Specification】

·Production Speed：3-6PCS/min ·Power：Single Hydraulic station: 15KW；Double hydraulic station: 2×15KW ·Maximum Process：600×1000mm（Diameter×height） ·Central working hegiht：960mm ·Operation Style：Automatic/ half Automatic

·Main machine Dimension：4910×850×1765mm ·Hydraulic station Dimension：1300×900×1400mm ·Electrical Cabint Dimension：700×600×1800mm ·Weight：6.8T

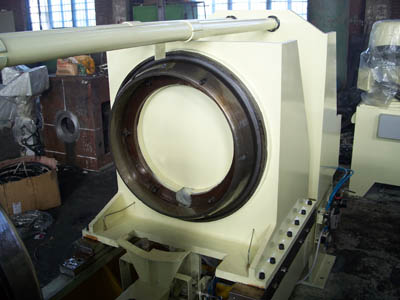

2.4 Guide rail type Edge Rolling & Sealing Machine



　　【Products Feature】

The machine is used to rolling and sealing the steel drums from 100-200L with 0.4-1.25 thickness automatically. The main machine is made of box body, the chassis and the main driven system and the machine is made of main machine, Hydraulic Station、Electrical Cabinet and Automatic feed device and it is controlled by PLC program and untouch point control. The production speed should be around 4-5 PCS/ minutes.

　　【Main Technical Specification】

·Thickness of Rolling and Sealing：0.4-1.2mm ·Barrel size：80-220L ·Operation Style：Automatic/ half Automatic ·Machine Prodcution Speed：4-5PCS/min ·Machine center working height：860mm

·Motor Power：11+2×15KW ·Machine Dimension：4340×850×2070mm ·Hydraulic StationDimension：850×800×1270mm ·Electrical CabinetDimension：700×600×1800mm ·Weight：7T



2.5 Guide rail type Edge Rolling & Sealing Machine

　　【Products Feature】

The machine is used to rolling and sealing the steel drums from 100-200L with 0.4-1.25 thickness automatically. The main machine is made of box body, the chassis and the main driven system and the machine is made of main machine, Hydraulic Station、Electrical Cabinet and Automatic feed device and it is controlled by PLC program and untouch point control. The production speed should be around 4-5 PCS/ minutes.



　　【Main Technical Specification】

·Thickness of Rolling and Sealing：0.4-1.2mm ·Drum Size：80-220L ·Operation Style：Automatic/ half Automatic ·Machine Prodcution Speed：4-5PCS/min ·Machine center working height：960mm

·Motor Power：37.5KW ·Machine Dimension：3760×850×2150mm ·Hydraulic StationDimension：1205×870×1170mm ·Electrical CabinetDimension：700×600×1800mm ·Weight：7T



2.6 Rolling (neck shrank) edge folding machine

　　【Products Feature】

The machine is used to rolling and sealing the steel drums from 100-200L with 0.4-1.25 thickness automatically. The main machine is made of box body, the chassis and the main driven system and the machine is made of main machine, Hydraulic Station、Electrical Cabinet and Automatic feed device and it is controlled by PLC program and untouch point control. The production speed should be around 4-5 PCS/ minutes.



　　【Main Technical Specification】

·Edge folding thickness：0.4-1.2mm ·Axle speed：168r/min ·Working Pressure：5.5MPa ·Machine Prodcution Speed：4-5件/min ·Machine center working height：860mm

·Motor Power：15KW+5.5×2KW ·Machine Dimension：3413×1650×1651mm ·Hydraulic StationDimension：850×800×1270mm ·Electrical CabinetDimension：700×600×1800mm ·Tank Diameter：80mm



2.7 "W" Reinforced Bar Forming Machine

　　【Products Feature】

The machine is used to rolling and sealing the steel drums from 100-200L with 0.4-1.25 thickness automatically. The main machine is made of box body, the chassis and the main driven system and the machine is made of main machine, Hydraulic Station、Electrical Cabinet and Automatic feed device and it is controlled by PLC program and untouch point control. The production speed should be around 4-6 PCS/ minutes.



　　【Main Technical Specification】

·Thickss of rolling and forming：0.4-1.2mm ·Axle Speed：330r/min ·Working Pressure：6.3MPa ·Machine Prodcution Speed：4-6 PCS/min ·Machine center working height：760mm

·Motor Power：7.5KW+7.5×2KW ·Machine Dimension：4320×2100×1450mm ·Hydraulic StationDimension：850×800×1270mm ·Electrical CabinetDimension：700×600×1800mm ·Cylindar Diameter：100mm



2.8 Extrusion Edging Machine

　　【Products Feature】

This machine is the child products of "3 in 1" Machine, it is driven by hydraulic. The machine can be used to produce all kinds of open or closed barrels from 50 to 208L 　automatically. The barrel body errom can reach only ±0.1mm.



　　【Main Technical Specification】

·Hydraulic system rated power：14MPa Machine Prodcution Speed：10PCS/min ·Machine center working height：920mm ·Motor Power：7.5KW ·Main Machine Dimension：2700×650×1400mm

·Hydraulic Station Dimension：850×850×1400mm ·Electrical CabinetDimension：700×600×1800mm ·Material Thickness：0.4-1.5mm ·Barrel Diameter：280-600mm ·Barrel Height：300-1000m



3 Barrel Painting and Drying Equipments

3.1 Barrel paint spraying & drying line （Coal single bridge type）

　　【Products Feature】

·The drying tunnel uses coal to heat the strong the hot recycle. The tunnel is single bridge structure, the furnace is flat pack steel structure. The interior panel is steel panel, the exterior wall panle is color steel panle and the insulation lay thickness is 120mm. THe tubes in the furnace is made of stainless steel. The spcial structure in the furnce can make the temperature in the furnace even.

Recycle fan of the coal furnace is for special desin the blade is made of manganese steel, the driven axel and bearings are processed by high temperature treatment. The cooling method is water cooling and it adpot water curtain to remove the dust.

·Two coal furnace is set at the bottom of the back part and the furnace is combine of door, fire grate,  spherical combustion chamber, fire gather board, second chamber and chimney.
·It adopt XJY-200 closed type Hanging converyer machine， bearing 30kg per point，Distance 2OOmm，Chain length 100-130m（It is designed as specific request）. The system include drive, tension devices, there are temperature Telescopic rail, all the hanging tools are equipped on the whole production line.
·The electrical system of fan and converyor system is control by a standard electrical cabinet.

　　【Main Technical Specification】

·curing time：15-12min ·Prodcution Speed：3 PCS/Minute ·Drying Temperature：140-240℃ ·Fuel：Coal ·Operation Style：Automatic

·Curing Ovens Power：60*10000 kilocalorie/hour ·Air flow：15000-25000 SQM/Hour ·Motor power：7KW ·Converyer type：Hanging transportation ·Coal consume：≤500Kg/Thousand Barrel



3.2 Barrel paint spraying & drying line （Coal double bridge type）

　　【Products Feature】

·The drying tunnel uses coal to heat the strong the hot recycle. The tunnel is Double bridge structure, the furnace is flat pack steel structure. The interior panel is steel panel, the exterior wall panle is color steel panle and the insulation lay thickness is 120mm. THe tubes in the furnace is made of stainless steel. The spcial structure in the furnce can make the temperature in the furnace even.

Recycle fan of the coal furnace is for special desin the blade is made of manganese steel, the driven axel and bearings are processed by high temperature treatment. The cooling method is water cooling and it adpot water curtain to remove the dust.

·Two coal furnace is set at the bottom of the back part and the furnace is combine of door, fire grate,  spherical combustion chamber, fire gather board, second chamber and chimney.
·It adopt XJY-200 closed type Hanging converyer machine， bearing 30kg per point，Distance 2OOmm，Chain length 100-130m（It is designed as specific request）. The system include drive, tension devices, there are temperature Telescopic rail, all the hanging tools are equipped on the whole production line.
·The electrical system of fan and converyor system is control by a standard electrical cabinet.



　　【Main Technical Specification】

·curing time：15-12min ·Prodcution Speed：4PCS/Minute ·Drying Temperature：140-240℃ ·Fuel：Coal ·Operation Style：Automatic

·Curing Ovens Power：60*10000 kilocalorie/hour ·Air Flow：15000-25000SQM/hour ·Motor power：7KW ·Hanging Method：Hanging converyer ·Coal consume：≤500Kg/thousand Drums



3.3 Barrel paint spraying & drying line （Coal tunnel type）

　　【Products Feature】

·The drying tunnel uses coal to heat the strong the hot recycle. The tunnel is tunnel type structure, the furnace is flat pack steel structure. The interior panel is steel panel, the exterior wall panle is color steel panle and the insulation lay thickness is 120mm. THe tubes in the furnace is made of stainless steel. The spcial structure in the furnce can make the temperature in the furnace even.

Recycle fan of the coal furnace is for special desin the blade is made of manganese steel, the driven axel and bearings are processed by high temperature treatment. The cooling method is water cooling and it adpot water curtain to remove the dust.

·Two coal furnace is set at the bottom of the back part and the furnace is combine of door, fire grate,  spherical combustion chamber, fire gather board, second chamber and chimney.
·It adopt XJY-200 closed type Hanging converyer machine， bearing 30kg per point，Distance 2OOmm，Chain length 100-130m（It is designed as specific request）. The system include drive, tension devices, there are temperature Telescopic rail, all the hanging tools are equipped on the whole production line.
·The electrical system of fan and converyor system is control by a standard electrical cabinet.



　　【Main Technical Specification】

·curing time：15-12min ·Prodcution Speed：4PCS / Minute ·Drying Temperature：140-240℃ ·Fuel：Coal ·Operation Style：Automatic

·Curing Ovens Power：60*10000 kilocalorie/hour ·Air Flow：15000-25000SQM/hour ·Motor power：7KW ·Hanging Method：Hanging converyer ·Coal consume：≤500Kg/thousand Drums



3.4 Steel barrel clean and Phosphorization line（tunnel type）

　　【Products Feature】

Steel drums were hang on the hangers to send into the clean section to finish the deoil, water wash, phosphorization, drying then sent out the production line.



　　【Main Technical Specification】

·Production Time：15-12min ·Prodcution Speed：3-4PCS / Minute ·Drying Temperature：110-190℃ ·Fuel：Coal ·Operation Style：Automatic

·Curing Ovens Power：50-100*10000 kilocalorie/hour ·Air Flow：7000-15000SQM/hour ·Motor power：7KW ·Hanging Method：Barrel lid Hanging converyer，Barrel body chain conveyor ·Coal consume：≤1000Kg/thousand Drums



3.5 Steel barrel clean and Phosphorization line（hanging & chain type）

　　【Products Feature】

Drums were hang on the hangers to send into the clean section to finish the deoil, water wash, phosphorization, drying then sent out the production line.

　　【Main Technical Specification】

·Water Drying Time：15-12min ·Prodcution Speed：3 PCS/Minute ·Drying Temperature：110-170℃ ·Fuel：Coal ·Operation Style：Automatic

·Curing Ovens Power：30-50*10000 kilocalorie/hour ·Air flow：7000-12000SQM/hour ·Motor power：7KW ·Hanging Method：barrel lid, body Hanging converyer ·Coal consume：≤500Kg/Thousand drums



3.6 Steel barrel painting Line



　　【Main Technical Specification】

·curing time：15-12min ·Prodcution Speed：3PCS / Minute ·Drying Temperature：140-240℃ ·Fuel：Coal ·Operation Style：Automatic

·Curing Ovens Power：30-50*10000 kilocalorie/hour ·Air Flow：15000-25000SQM/hour ·Motor power：7KW ·Hanging Method：Barrel lid, body Hanging converyer ·Coal consume：≤500Kg/thousand Drums
